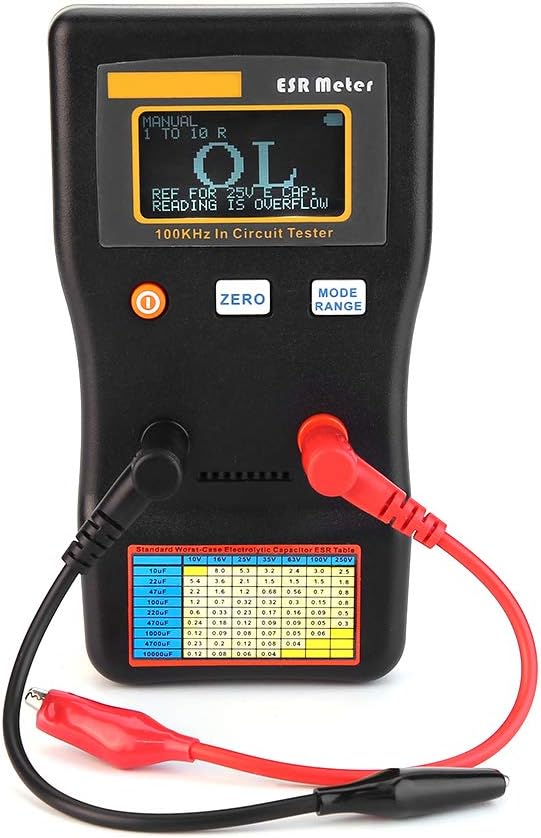

Auto Ranging ESR LCR Meter Capacitor Low Ohm Meter R513164
Auto Ranging ESR LCR Meter Capacitor Low Ohm Meter R513164

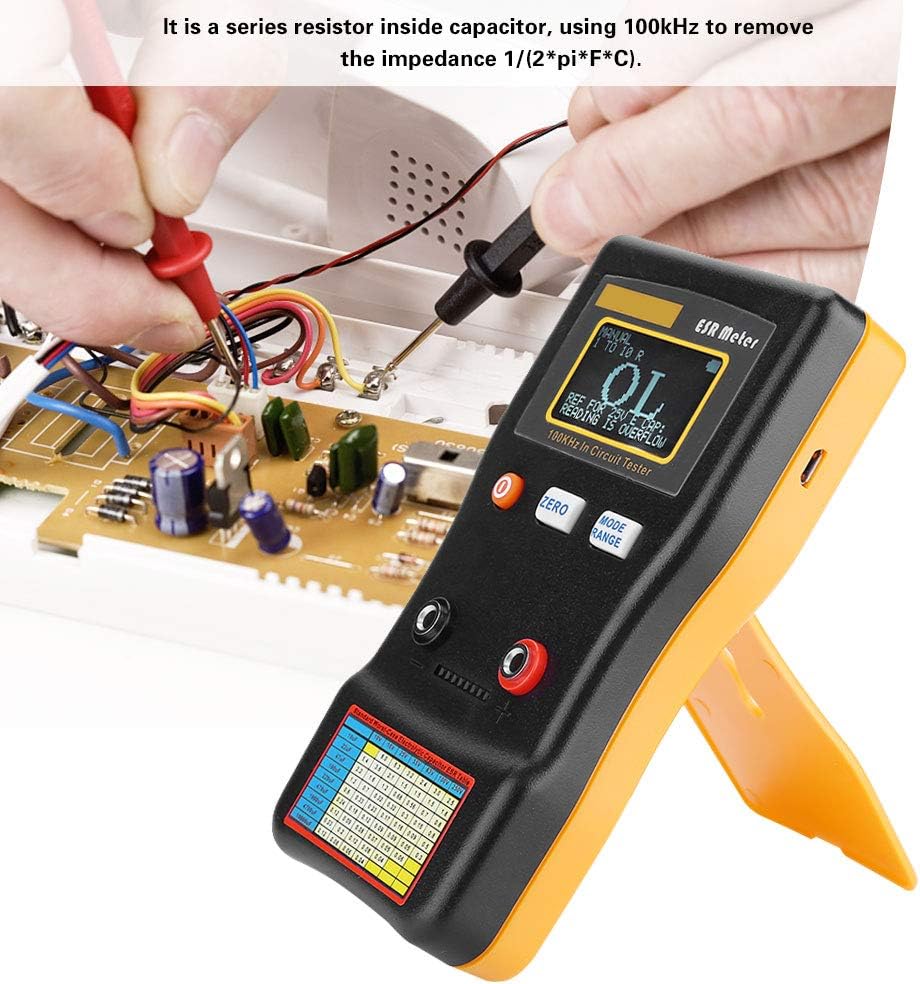

Pocket Digital Multimeter - It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). The impedance become small, and we can then measure the true series resistor value. .Using this theory, we can measure the capacitor is bad/ damaged or good in condition.Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.
2 Measuring Modes Supported - Auto Range or Manual Range, You can Easily Select the Mode by Pressing 'Measuring' Button; You can Easily Select the Mode by Pressing 'SELECT' Button until the Continuity Symbol Appears on the Screen.Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.

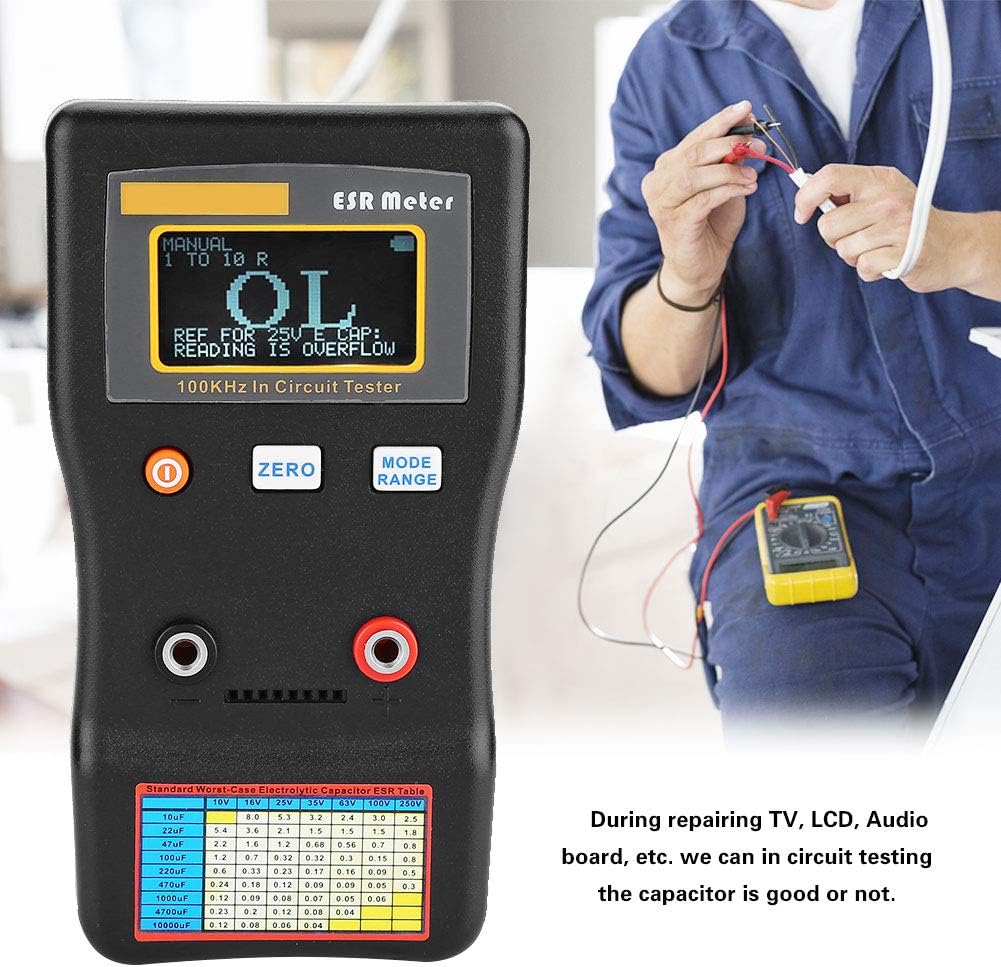

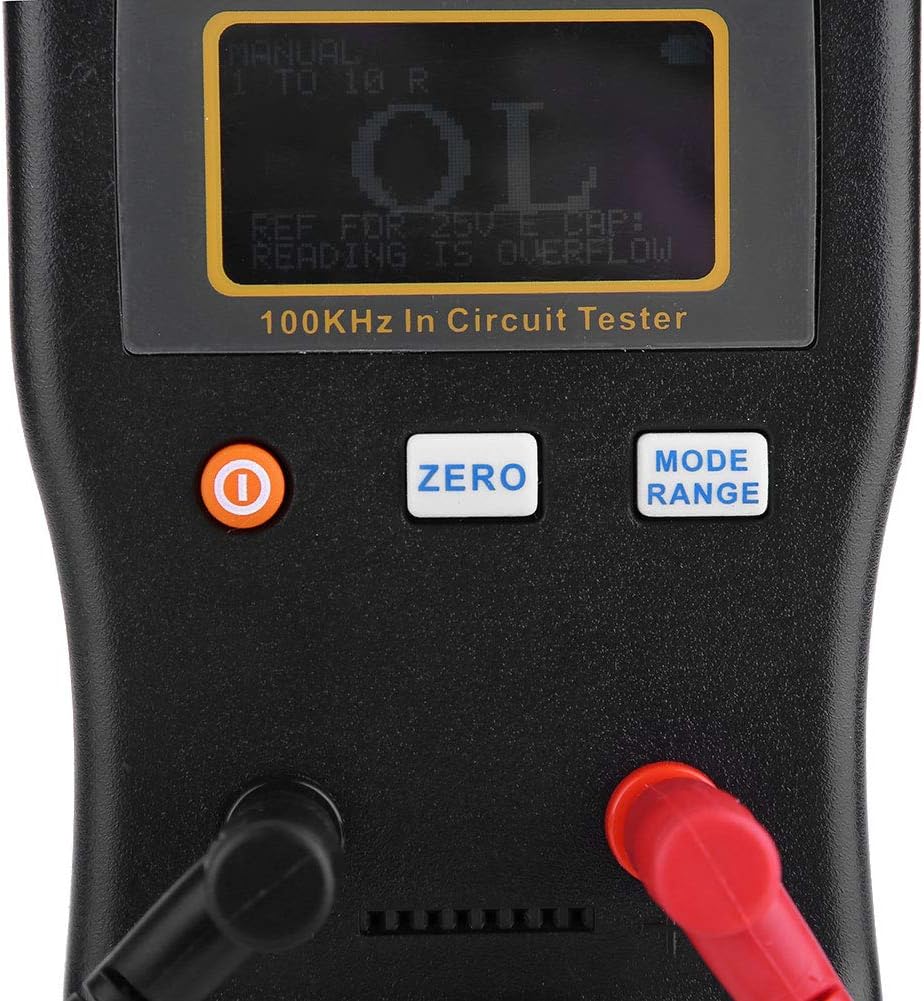

Large Backlit LCD Display - Auto Polarity Display, Easy to Read Large Backlit LCD Display, Back-light Makes a Real Difference in Low Light Areas.During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Nice Protective Shell - The Case with Our Multimeter is Some Kind of Non Slip, Slightly Soft Plastic that Will Help with Drop Protection, The Stand Places the Device at a 45° Angle and Makes the Screen Easy to See Hands Free.
Portable and Package - 1 * Capacitance Meter (battery not included),2 * Test Clips ,1 * User Manual;However, As a General Measurement Tool with High Accuracy, It is a Reliable Friend to Help You Troubleshoot a Variety of Automotive and Household Electrical Problems, Widely Used in the School, Laboratory, Factory, Radio-Technology and Other Social Field.
Specifications:
ModelMESR-100
RangeAccuracy (After Zero, tested with 1,10,100R resistor)Refresh Time (Manual Mode)
*Auto mode take 0 to 2s more time depend on value
0.000 to 1.000R1%+2Digit0.4s
1.000 to 10.00R1%+1Digit0.4s
10.00 to 100.0R2%+1Digit0.4s
AccuracyUp to 1% (detail on above table) Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz )
High Resolution4 digit, or 0.001Ohm @ 1 Ohm range
Measuring voltage<40mV RMS (TESTING VOLTAGE)
Clamping voltage0.15V (open voltage)
Battery2X AA 1.5V battery(not included)
External Power5V micro USB
Battery Life time>80 Hours
Operating current0.02A

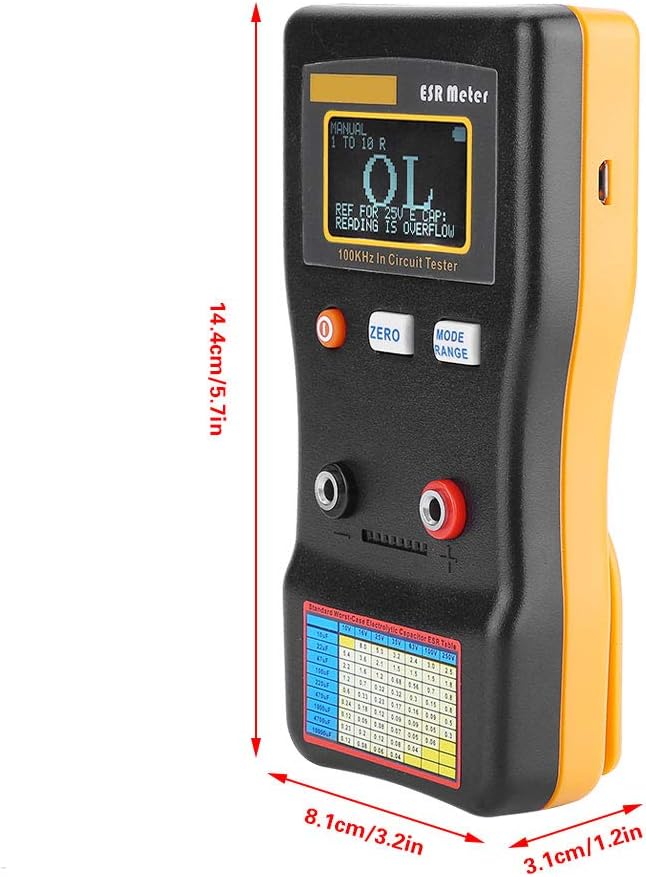

Size14.4*8.1*3.1cm/5.7*3.2*1.2in
Weight Approx.219g/7.7oz
Package List
1 * Capacitance Meter (battery not included)

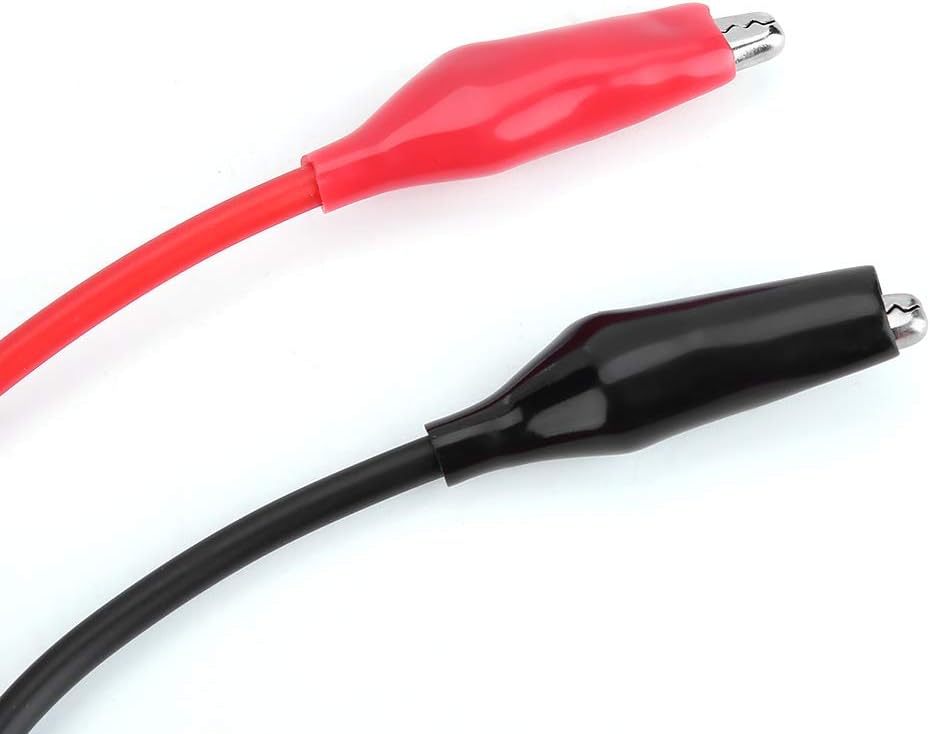

2 * Test Clips
1 * User Manual
